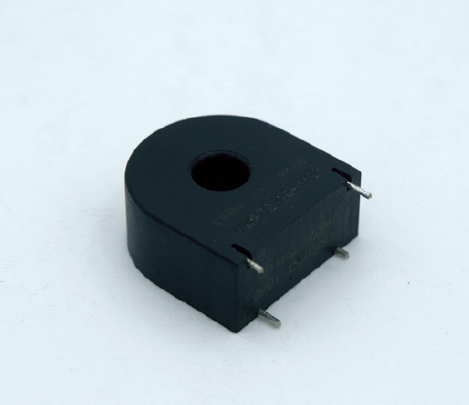

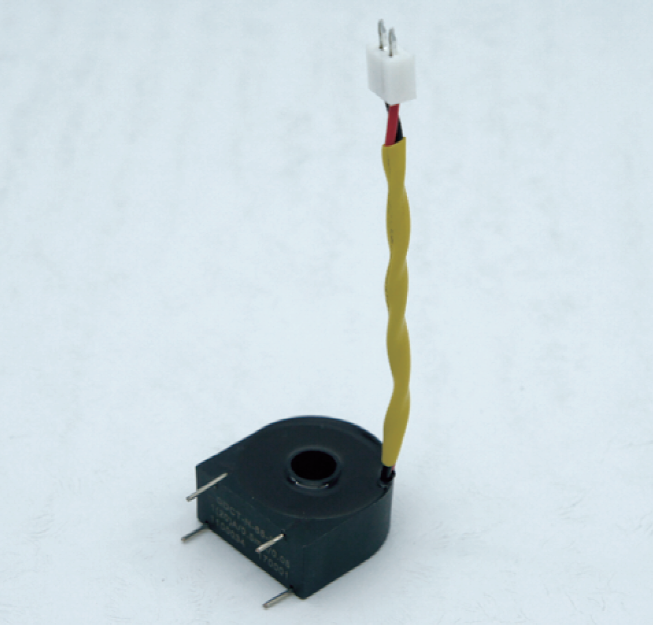

Current transformer for three-phase meter-EHC-XCT linear Series
views:992time:2020-07-21 11:36:28
EHC-XCT  linear Series EHC-XCT  linear Series
Features

Key Features/Application

l  Suitable for three-phase electric energy meters with high precision and small phase displacement

l  Wide linear output current, high precision and good consistency

l  Encapsulated with epoxy resin, Power-frequency Withstand Voltages: 4000V 50Hz/1min,

          Insulation  Resistance: ≥1000MΩ/500Vdc

l  Working Frequency: 50Hz/60Hz

l  Operating Temperature: -40℃85℃

l  Comply to JB/T10665-2016、IEC61869-2-2012




Specifications

Only few typical products of this series are shown in the following page. EHC is capable of making other customized design and manufacturing per user request.


Specifications

Model

Current Ratio

Rated Burden(Ω

Accuracy Class

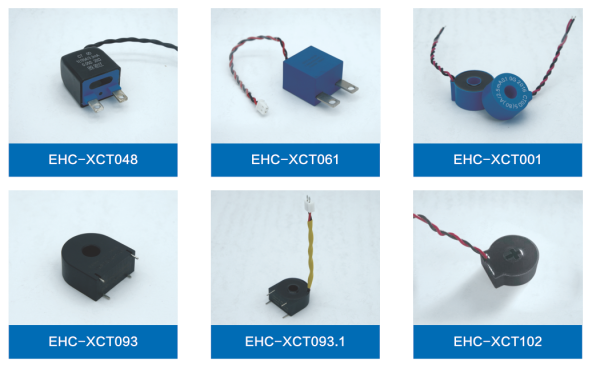

EHC-XCT048(Anti magnetism)

EHC-XCT061

0.3(1.2)A/2.5mA

10

20

0.05

0.1

1(6)A/5mA

1.5(6)A/2mA

1.5(6)A/5mA

1.5(10)A/2mA

1.5(10)A/5mA

5(10)A/5mA

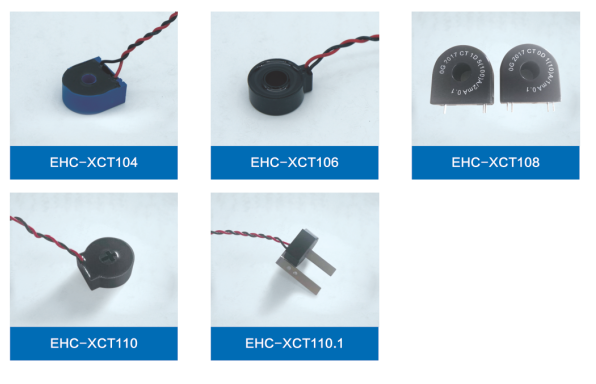

EHC-XCT001

EHC-XCT093

EHC-XCT093.1

EHC-XCT102

EHC-XCT104

EHC-XCT106

EHC-XCT108

EHC-XCT110

EHC-XCT110.1

1(10)A/0.5mA

1(20)A/0.5mA

1.5(6)A/0.75mA

5(10)A/2.5mA

5(20)A/2.5mA

5(60)A/2.5mA

EHC-XCT001

EHC-XCT102

5(80)A/2.5 mA

5(100)A/2.5 mA

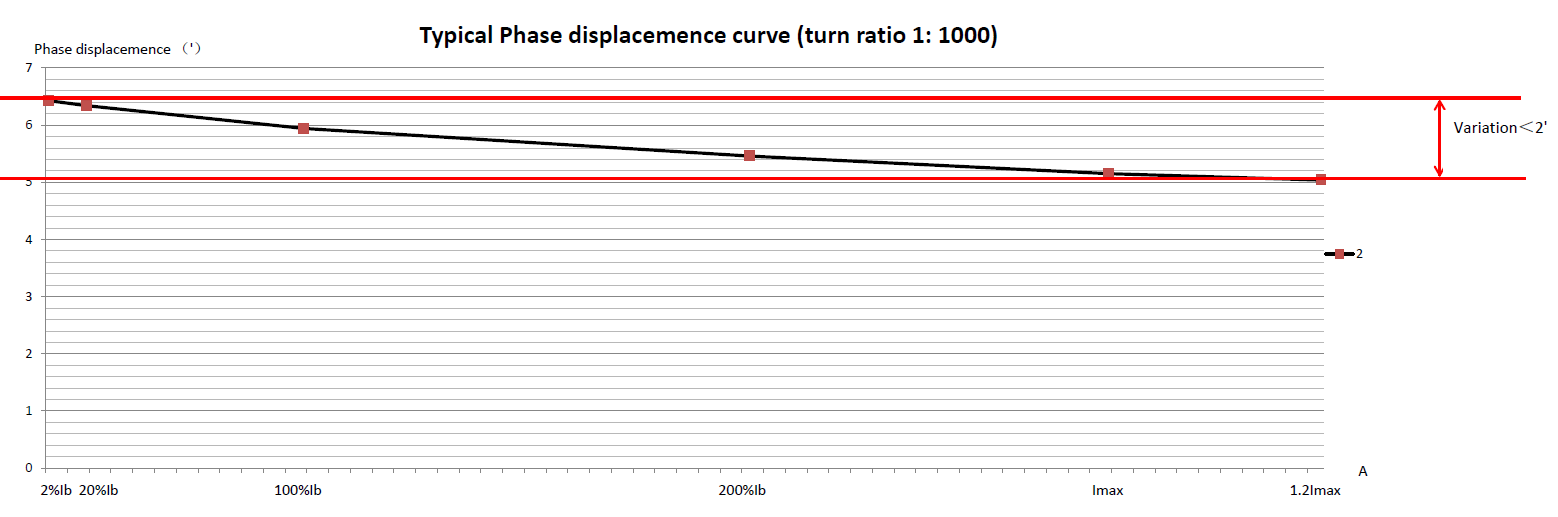

Characteristic curve


modelEHC-XCT linear Series
Current transformer for three-phase meter
Download

PDF
