Current transformer for single-phase meter-EHC-CT Series
views:961time:2020-07-21 11:30:42
EHC-CT  Series EHC-CT  Series
Features

Key Features/Application

l  Suitable for single-phase electricity meter and anti-tampering electricity meter

l  Compact and delicate appearance

l  Wide linear output current, high precision and good consistency

l  Encapsulated with epoxy resin, Power-frequency withstand voltage: 4000V/1min,

          Insulation resistance: ≥1000MΩ/500Vdc

l  Working Frequency: 50Hz/60Hz

l  Operating Temperature: -40℃85℃

l  Comply to JB/T10665-2016、IEC61869-2-2012




Specifications

Specifications

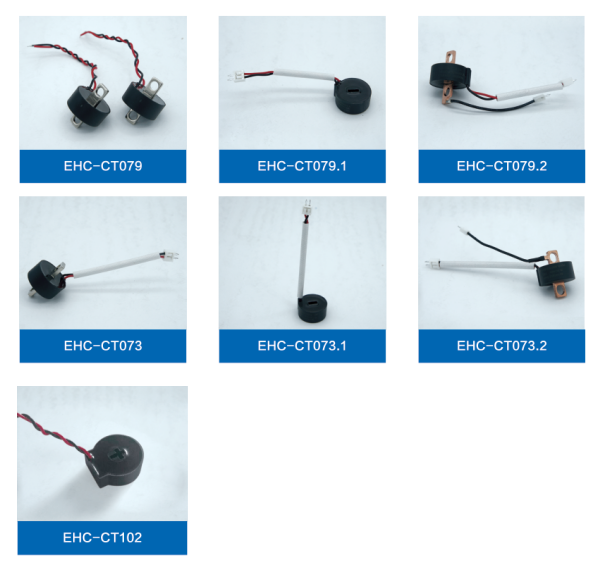

Model

Current Ratio

Rated Burden(Ω


Accuracy Class

EHC-CT079

EHC-CT079.1

EHC-CT079.2

5(60)A/2.5mA

5

10

0.1

0.2

0.5

10(60)A/5mA

EHC-CT073

EHC-CT073.1

EHC-CT073.2

EHC-CT102

5(80)A/2.5mA

5(100)A/2.5mA

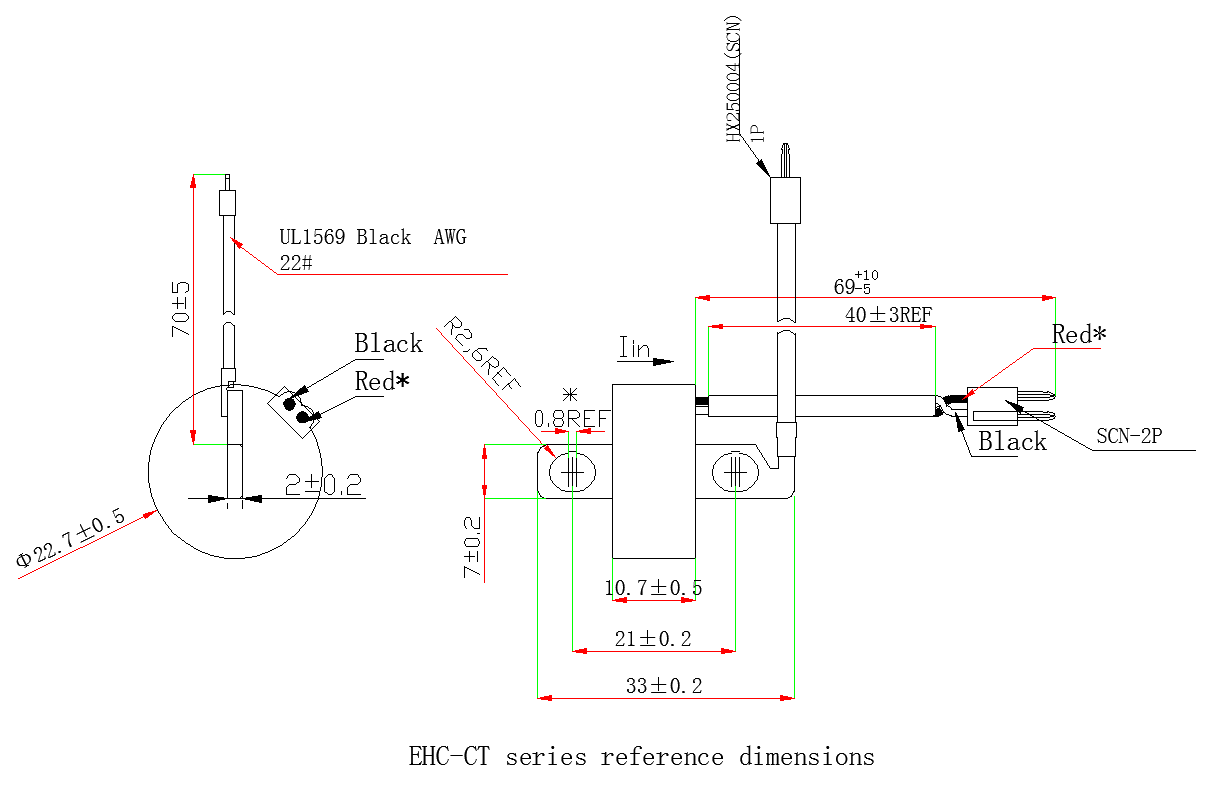

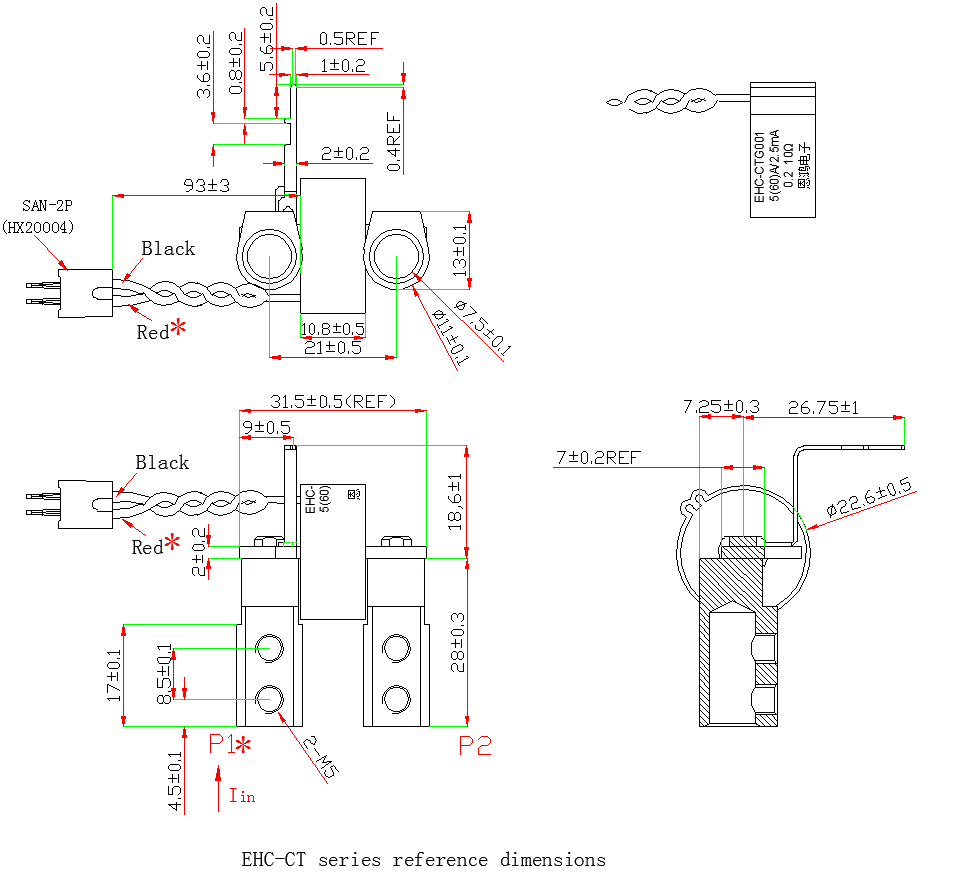

Dimension(mm)










modelEHC-CT Series
Current transformer for single-phase meter
