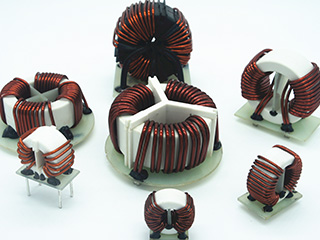

Common mode inductor core-共模電感
views:1234time:2020-07-20 15:23:06
共模電感
Features

Application Field:

  Inverter; inverter (inverter welding machine, photovoltaic inverter) converter; switching power supply; EMC filter; wind power; household appliances;


Performance characteristics

High saturation magnetic induction

Excellent wide frequency characteristics;

Extensive permeability adjustment range;

Better anti - unbalanced current capability;

Excellent temperature stability (high temperature);

Low loss.


Material properties:

Saturation magnetic induction  Bs(T)

1.2

Coercivity  Hc (A/m)

<2

Curie temperature  Tc(℃)

570

Crystallization temperature  Tx(℃)

500

Lamination factor

>0.75

thickness  (mm)

0.016~0.035

working temperature  (℃)

-55~130

Initial permeability  μi

1×104~20×104




Specifications



型號

Product number



類型

style

額定

電流

IN

匝數(shù)

Turns

線徑

Wire diameter

標(biāo)稱電感量
LN

磁芯規(guī)格

Core specification

10KHz

(mH)

100KHz

(mH)

EHC-GM02-SP151

single-phase

2

16

0.55*1P

8.0

1.7

15*10*6

EHC-GM05-SP152

single-phase

5

10

0.9*1P

2.9

0.6

15*10*6

EHC-GM05-SP201

single-phase

5

13

0.9*1P

9.0

1.8

20*12*8

EHC-GM08-SP203

single-phase

8

10

1.15*1P

5.8

1.2

20*12*8

EHC-GM10-SP251

single-phase

10

16

1.25*1P

7.8

1.6

25*20*10

EHC-GM12-SP252

single-phase

12

11

1.4*1P

7.5

1.6

25*16*10

EHC-GM15-SP301

single-phase

15

13

1.55*1P

9.5

1.9

30*20*10

EHC-GM20-SP321

single-phase

20

11

1.8*1P

7.5

1.6

32*20*10

EHC-GM25-SP331

single-phase

25

9

1.4*2P

6

1.2

33*23*15

EHC-GM30-SP401

single-phase

30

11

1.8*2P

5

1.1

40*32*15

EHC-GM30-TP402

triphase

30

7

2.0*1P

2.2

0.45

40*32*15

EHC-GM40-SP501

single-phase

40

9

2.24*2P

4.0

1.0

50*40*20

EHC-GM40-TP502

triphase

40

7

2.24*2P

2.5

0.55

50*40*20

EHC-GM60-SP502

single-phase

60

9

2.8*2P

6.0

1.5

65*50*25

EHC-GM60-TP502

triphase

60

6

2.8*2P

2.8

0.65

65*50*25

Can be customized according to customer requirements


model共模電感
Common mode inductor core
