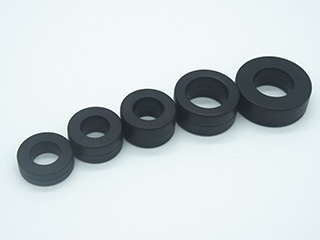

Amorphous constant inductance iron core-非晶恒電感鐵芯
views：819time：2020-07-20 15:09:52
非晶恒電感鐵芯
Features

Application Field: Applicable to EMC resistance mode interference inductor, car audio, charging circuit output smoothing filter and energy storage inductance.


Performance characteristics

l high saturation magnetic sense

l excellent frequency characteristics

l good attenuation characteristics

l low leakage magnetic

l good temperature stability


Material properties:

Saturation magnetic induction  Bs（T）

1.56

Coercivity  Hc （A/m）

<10

Curie temperature  Tc（℃）

410

Crystallization temperature  Tx（℃）

400

Lamination factor

>0.8

Thickness  (mm)

0.025～0.035

Working temperature℃

-55～130





Specifications

ID－ inside diameter,  OD－Outer diameter, HT－h(huán)eight

Lamination factor：0.8

Can be customized according to customer requirements


產(chǎn)品型號(hào)

Product number

磁芯尺寸

Core size

護(hù)盒尺寸

Case size

磁導(dǎo)率

μr

OD×ID×HT

OD

ID

HT

mm×mm×mm

mm

mm

mm

CLC-19*14*8

19*14*8

22.8

12

10.4

250~3000

CLC-22*17*10

22*17*10

24.5

15.3

12.5

CLC-23*16*8

23*16*8

24.9

14.1

10.9

CLC-21*14*8

21*14*8

23.1

12.4

10

CLC-21*15*10

21*15*10

23.6

12.9

12.4

CLC-20*14*10

20*14*10

22.7

12.1

11.8

CLC-25*19*10

25*19*10

27.5

17.0

12.8

CLC-21*16*10

21*16*10

23.9

13.6

12.7

CLC-21*16*10D

21*16*10

24.9

14

12.2

CLC-24*18*10

24*18*10

27

16

12.6

CLC-23*17*12

23*17*12

25.1

14.9

14.4

CLC-25*17*10

25*17*10

28

15.4

13.1

CLC-23*15.5*10

23*15.5*10

25.3

13.9

12.7

CLC-25*16*8

25*16*8

27.6

13.7

10.6

CLC-25*16*10

25*16*10

27.6

13.8

12.6

CLC-38*27*8

38*27*8

40.9

25.3

11.1

CLC-26*16*10

26*16*10

28.3

14.1

12.8

CLC-27*19*8

27*19*8

29.3

16.8

9.7

CLC-30*20*8

30*20*8

32.8

18.1

9.8

CLC-32*20*10

32*20*10

34.4

18

12.9
