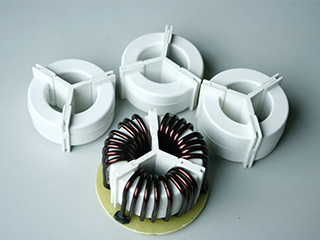

Common mode inductor core-共模電感鐵芯
views:1696time:2020-07-20 14:51:44
共模電感鐵芯
Features

Application Field:

  Inverter; inverter (inverter welding machine, photovoltaic inverter) converter; switching power supply; EMC filter; wind power; household appliances;


Performance characteristics

High saturation magnetic induction;

Excellent wide frequency characteristics;

Extensive permeability adjustment range;

Better anti - unbalanced current capability;

Excellent temperature stability (high temperature);

Low loss.


Material properties:

Saturation magnetic induction  Bs(T)

1.2

Coercivity   Hc (A/m)

<2

Curie temperature   Tc(℃)

570

Crystallization temperature  Tx(℃)

500

Lamination factor

>0.75

Working temperature℃

-40~130

Initial permeability   μi(Br≈0.8T)

18×104

Initial permeability   μi(Br≈0.4T)

10×104

Initial permeability   μi(Br≈0.1T)

3×104

loss P(20kHz,0.5T),(W/kg)

<20




Specifications

ID-inside diameter,  OD-Outer diameter, HT-h(huán)eight

lamination factor:0.75

Can be customized according to customer requirements




產(chǎn)品型號

Product number

磁芯尺寸

Core size

護盒尺寸

Case size

有效

截面積

iron cross

section

磁路

長度

mean path length

重量

weight

額定電感量

nominal inductance

OD x IDx HT

OD

ID

HT

AFe

lFe

mFe

10 kHz

100 kHz

mmxmmxmm

mm

mm

mm

cm2

cm

g

μH

HLC-9.8*6.5*4.5

9.8 x 6.5 x 4.5

11.4

5

6.1

0.06

2.6

1.1

25.5

6.4

HLC-12*8*4.5

12 x 8 x 4.5

14.4

6.6

7.0

0.07

3.1

1.7

28

6.8

HLC-12.5*10*5

12.5 x 10 x 5

14.0

8.6

6.7

0.05

3.5

1.3

10

3.6

HLC-16*10*5

16 x 10 x 5

18.1

8.3

7.3

0.12

4.0

3.6

27

6.7

HLC-15*10*6

15 x 10 x6

18.0

8.4

9.3

0.12

3.9

3.4

32

7.3

LLC-15*10*6

15 x 10 x6

18.0

8.4

9.3

0.12

3.9

3.4

11.7

6.5

HLC-19*15*5

19 x 15 x 5

21

13.3

6.7

0.08

5.3

3.1

18

4.4

HLC-19*15*10

19 x 15 x 10

21.1

13.3

12.2

0.16

5.3

6.3

36.1

8.8

HLC-20.5*16.5*12

20.5 x 16.5 x 12

23.2

14.7

15.2

0.19

5.81

7.5

30.5

7.9

HLC-25*20*10

25 x 20 x 10

27.7

18.1

17.8

0.2

7.1

10

28.4

7.3

HLC-25*15*10

25 x 15 x 10

28.1

13.2

12.3

0.4

6.28

18

70

16

HLC-25*16*10

25 x 16 x 10

27.6

13.8

12.6

0.36

6.4

17

65.5

15.5

MLC-25*16*10

25 x 16 x 10

27.6

13.8

12.6

0.36

6.4

17

17

11.5

LLC-25*16*10

25 x 16 x 10

27.6

13.8

12.6

0.36

6.4

17

3.2

3.1

HLC-30*20*10

30 x 20 x 10

33.1

17.7

13.3

0.4

7.9

23

59.3

14

MLC-30*20*10

30 x 20 x 10

33.1

17.7

13.3

0.4

7.9

23

15.5

11.1

LLC-30*20*10

30 x 20 x 10

33.1

17.7

13.3

0.4

7.9

23

2.9

2.8

HLC-30*20*15

30 x 20 x15

33.6

17.8

17.8

0.57

7.9

33

88

20

MLC-30*20*15

30 x 20 x15

33.6

17.8

17.8

0.57

7.9

33

15.7

14.1

HLC-32*20*10

32 x 20 x 10

34.3

18

12.9

0.48

8.1

27

65

12

HLC-40*32*15

40 x 32 x 15

44.9

28.6

18.8

0.46

11.3

38

47.2

11.1

MLC-40*32*15

40 x 32 x 15

44.9

28.6

18.8

0.46

11.3

38

13

8.4

LLC-40*32*15

40 x 32 x 15

44.9

28.6

18.8

0.46

11.3

38

2.3

2.2

HLC-40*25*15

40 x 25 x 15

43.9

21.5

18.7

0.86

10.2

64

101

23.1

MLC-40*25*15

40 x 25 x 15

43.9

21.5

18.7

0.86

10.2

64

25.4

17.2

HLC-45*30*15

45 x 30 x 15

48.5

26.7

17.8

0,86

11.8

74

87.5

20.3

MLC-45*30*15

45 x 30 x 15

48.5

26.7

17.8

0,86

11.8

74

24.3

15.9

HLC-50*40*20

50 x 40 x 20

53.6

37.1

23.1

0.76

14.1

79

45.3

14

MLC-50*40*20

50 x 40 x 20

53.6

37.1

23.1

0.76

14.1

79

18

10

HLC-59*40*20

59 x 40 x 20

63.7

36.8

24.4

1.52

15.5

165

80

20

HLC-65*50*25

65 x 50 x 25

68.2

46.5

28.5

1.5

18.0

190

58.6

18.1

MLC-65*50*25

65 x 50 x 25

68.2

46.5

28.5

1.5

18.0

190

23.3

13.5

MLC-90*60*20

90 x 60 x 20

93.5

55.1

24.5

2.28

23.6

400

32.5

21.1

HLC-102*76*25

102 x 76 x 25

107.3

59.6

30.4

2.47
2850868.821.6

MLC-160*130*25

160 x 130 x 25

168.6125.530.22.4745.691726.813.7



Characteristic curve

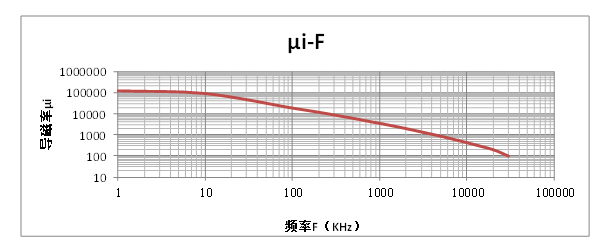

                                      Permeability - frequency   curve

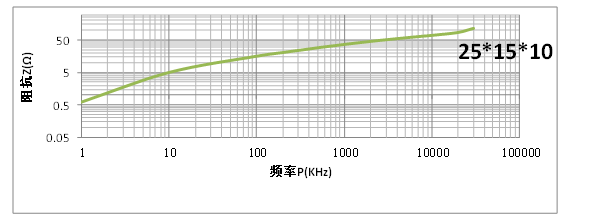

                                   Impedance - frequency curve

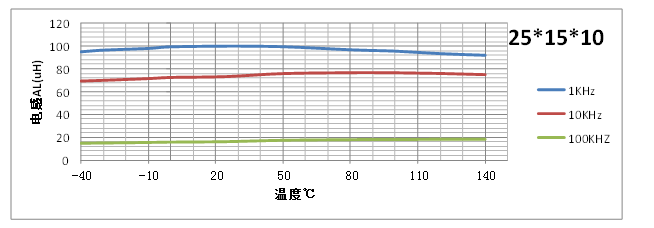

                                 Inductance -temperature  curve

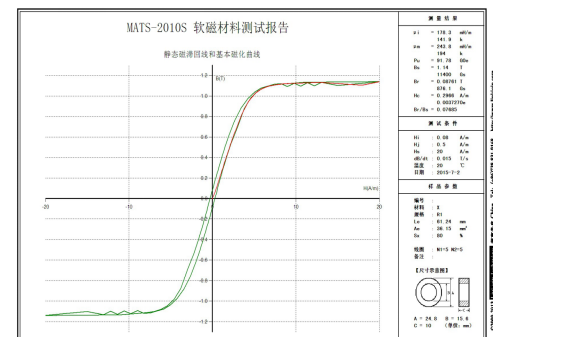

                                  hysteresis loop


model共模電感鐵芯
Common mode inductor core
