Toroidal transformer core-環(huán)形變壓器鐵芯
views:841time:2020-07-20 14:10:15

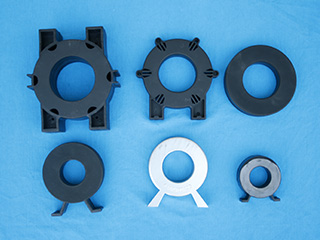

環(huán)形變壓器鐵芯
Features

Application Field:

Inverter power supply transformer

Plating power supply transformer

Welding transformer

Switching mode power supply transformer


Characteristics:

Made of iron-based nanocrystalline strip.

High saturation magnetic induction intensity can greatly improve the working point of the transformer, reduce the weight and the size of our power.

High permeability and low coercive force can improve the power efficiency.

Low loss, reduce the temperature rise of the transformer.

Good stability, allows operational temperatures from -55--130.




Material properties:

Saturation magnetic induction  Bs(T)

1.2

Coercivity  Hc (A/m)

<2

Curie temperature  Tc(℃)

570

Crystallization temperature  Tx(℃)

500

working temperature℃

-55~130

Loss P(20kHz,0.5T),(W/kg)

<20


Specifications

 ID-inside diameter,  OD-Outer diameter, HT-h(huán)eight

lamination factor:0.75

Can be customized according to customer requirements



產(chǎn)品型號

Product number

磁芯尺寸

Core size

護盒尺寸

Case size

有效

截面積

iron cross

section

磁路

長度

mean path length

重量

weight

額定電感量

nominal inductance

OD x ID x HT

OD

ID

HT

AFe

lFe

mFe

 10 kHz

100 kHz

mmxmmxmm

mm

mm

mm

cm2

cm

g

μH

HTC-15*10*6

15 x 10 x6

18.0

8.4

9.3

0.12

3.9

3.4

32

7.3

LTC-15*10*6

15 x 10 x6

18.0

8.4

9.3

0.12

3.9

3.4

11.7

6.5

HTC-25*20*10

25 x 20 x 10

27.7

18.1

12.8

0.2

7.1

10

28.4

7.3

HTC-25*15*10

25 x 15 x 10

28.1

13.2

12.3

0.4

6.28

18

70

16

HTC-25*16*10

25 x 16 x 10

27.6

13.8

12.6

0.36

6.4

17

65.5

15.5

LTC-25*16*10

25 x 16 x 10

27.6

13.8

12.6

0.36

6.4

17

17

11.5

HTC-30*20*10

30 x 20 x 10

33.1

17.7

13.3

0.4

7.9

23

59.3

14

LTC-30*20*10

30 x 20 x 10

33.1

17.7

13.3

0.4

7.9

23

15.5

11.1

HTC-30*20*15

30 x 20 x15

33.6

17.8

17.8

0.57

7.9

33

88

20

HTC-40*32*15

40 x 32 x 15

44.9

28.6

18.8

0.46

11.3

38

47.2

11.1

LTC-40*32*15

40 x 32 x 15

44.9

28.6

18.8

0.46

11.3

38

13

8.4

HTC-40*25*15

40 x 25 x 15

43.9

21.5

18.7

0.86

10.2

64

101

23.1

HTC-40*32*15

45 x 30 x 15

48.5

26.7

17.8

0,86

11.8

74

87.5

20.3

LTC-40*32*15

45 x 30 x 15

48.5

26.7

17.8

0,86

11.8

74

24.3

15.9

HTC-50*40*20

50 x 40 x 20

53.6

37.1

23.1

0.76

14.1

79

70

15

HTC-59*40*20

59 x 40 x 20

63.7

36.8

24.4

1.52

15.5

165

80

20

HTC-65*50*25

65 x 50 x 25

68.2

46.5

28.5

1.5

18.0

190

58.6

18.1

HTC-80*50*20

80 x 50 x 20

83.9

46.8

24.7

2.28

20.4

342

94

28

HTC-90*60*20

90 x 60 x 20

93.5

55.1

24.5

2.28

23.6

395

81

25.1

HTC-102*76*25

102 x 76 x 25

107.3

59.6

30.4

2.47

28

508

68.8

21.6

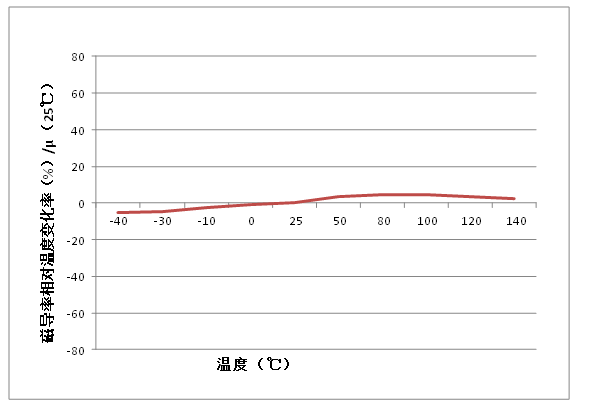

Characteristic curve

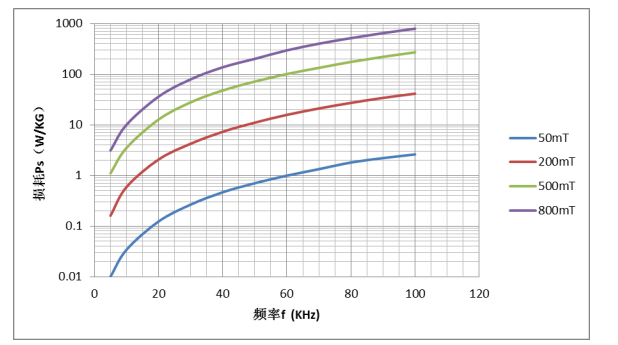

磁芯損耗特性曲線


model環(huán)形變壓器鐵芯
Toroidal transformer core
Download

DOCX
