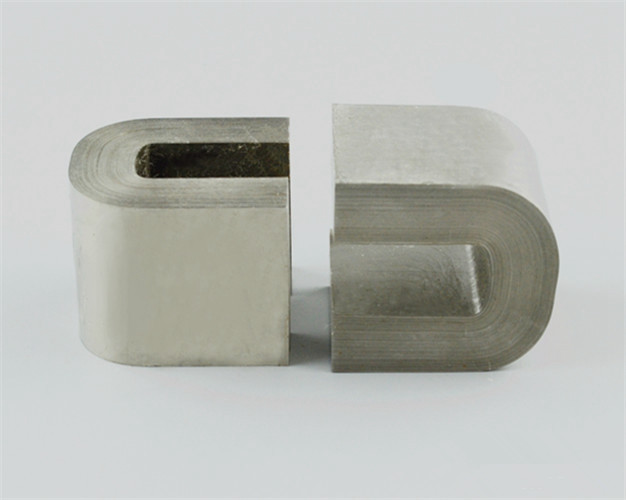

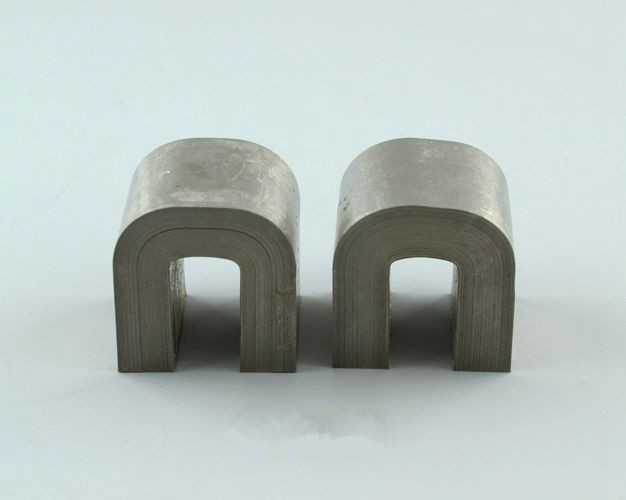

C core-C型磁芯
views:849time:2020-05-08 18:51:26
C型磁芯 C型磁芯
Features

Application Field

1.output filter reactor used in switching power supply

2.Iron cores for switching power supply transformer

3.Inverter welding machine and wind-power generation output filtering inductance

4.Iron cores for distribution transformer

5.Large current energy storage inductors


Characteristics

1.Made from iron-based amorphous or iron-based nanocrystalline materials

2.High Bs-high working efficiency

3.Easy coiling

4.High permeability and low coercive force-improve the efficiency of the device and reduce the volume

5.Low loss-good control of the temperature-rise of the device

6.good temperature stability-allows working temperature from -55~120


Specifications


a:Lamination thickness b: Inner width c: Inner length d:height

e:Outside width  f: Outer length R:Chamfer

lamination factor:0.8

Can be customized according to customer requirements


磁芯型號

a 疊片厚度

Lamination thickness

b 內(nèi)寬

Inside width

c 內(nèi)長

Inside length

d 高

height

e 外寬

Outside width

f 外長

Outside length

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

CC-4

9

10

32.8

15

28.0

50.8

CC-4B

9

11

33

15

29.0

51

CC-6.3

10

11

33

20

31.0

53

CC-8

11

13

30

20

35.0

52

CC-10

11

13

40

20

35.0

62

CC-16A

11

13

40

25

35.0

62

CC-16B

11

13

50

25

35.0

72

CC-17

12

30

60

20

54.0

84

CC-20

11

13

50

30

35.0

72

CC-21

10

17

37

40

37.0

57

CC-25

13

15

56

25

41.0

82

CC-26

16

40

45

20

72.0

77

CC-26B

16

20

50

20

52.0

82

CC-32

13

15

56

30

41.0

82

CC-33

10

20

58

40

40.0

78

CC-34

15

30

60

25

60.0

90

CC-40

13

15

56

35

41.0

82

CC-50

16

20

70

25

52.0

102

CC-63

16

20

70

30

52.0

102

CC-64

16

20

43

45

52.0

75

CC-65

16

20

58

45

52.0

90

CC-70

20

40

60

30

80.0

100

CC-80

16

20

70

40

52.0

102

CC-84

12

30

60

20

54.0

84

CC-100

16

20

70

45

52.0

102

CC-117

20

35

77

20

75.0

117

CC-128

22

35

84

25

79.0

128

CC-140

26

45

88

30

97.0

140

CC-140A

26

45

88

40

97.0

140

CC-168S

20.4

30

154.2

20

70.8

195

CC-125

19

25

83

35

63.0

121

CC-160

19

25

83

40

63.0

121

CC-180

25

35

65

30

85.0

115

CC-193

40

50

113

40

130.0

193

CC-200

19

25

83

50

63.0

121

CC-210

40

50

130

50

130.0

210

CC-367S

25.8

67

97.8

25

118.6

149.4
